1530 GFS Model
FOREST WINCH

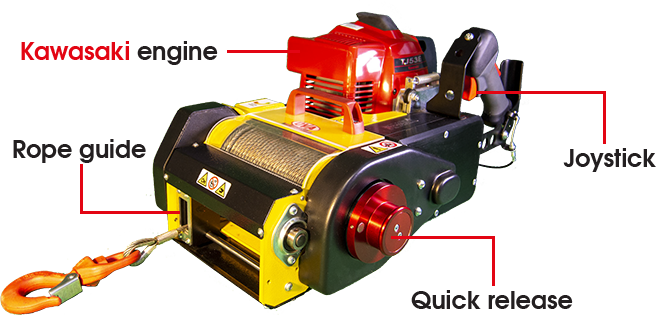

The GFS winch model is professionally top range. Among the various outstanding features, it's provided with a rope guide, a semi-automatic brake and a safety clutch that intervenes automatically in case of load lock, ensuring safe work at 360 degrees.
The semi-automatic brake, if activated, keeps the load to be recovered in the strain position. This allows to resume the same position after the arrest.
Watch the video
| TECHNICAL FEATURES | |
|---|---|
| model | 1530 GFS |
| code | 3020011 |
| weight with rope | 39 kg |
| direct shot | 1.550 kg |
| double shot | 3.100 kg |
| medium winding speed | 25 m / min. |
| drum capacity | Ø 6 mm x 60 m |
| engine | KAWASAKI - 2T / 53,2 cc |
| power | 2,0 kw / 9.500 rpm |
| brake | automatic / semi-automatic |
| dimensions | L 580 mm; W 320 mm; H 330 mm |
